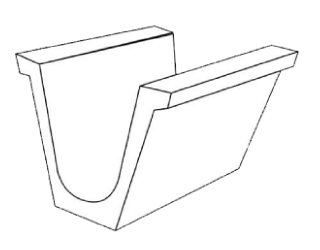

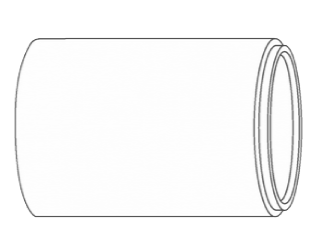

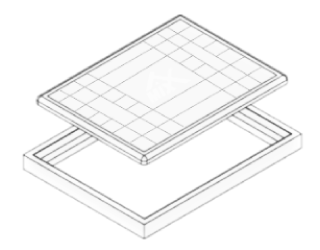

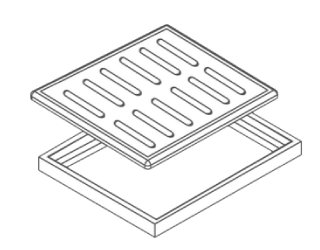

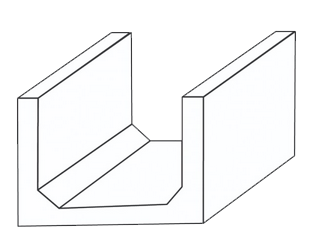

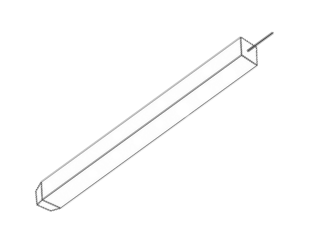

U-drains U-Drains box Culvert Box Culvert v-drains V-Drains Half Round Drains Half Round Drains Spun Pipe Spun Pipe / Precast Concrete Pipe Culvert Culvert Culvert drain Cover & Frame Drain Cover & Frame Reinforced Concrete Manhole Frames Reinforced Concrete Manhole Frame & Cover L Shapes L Shape Pre-Stressed RC Poles Pre-Stressed RC Pole
Reinforced Concrete Manhole Frame & Cover

Reinforced Concrete Manhole Cover Set J

Reinforced Concrete Manhole Frame & Cover
Reinforced Concrete Manhole Frame & Cover



product specification

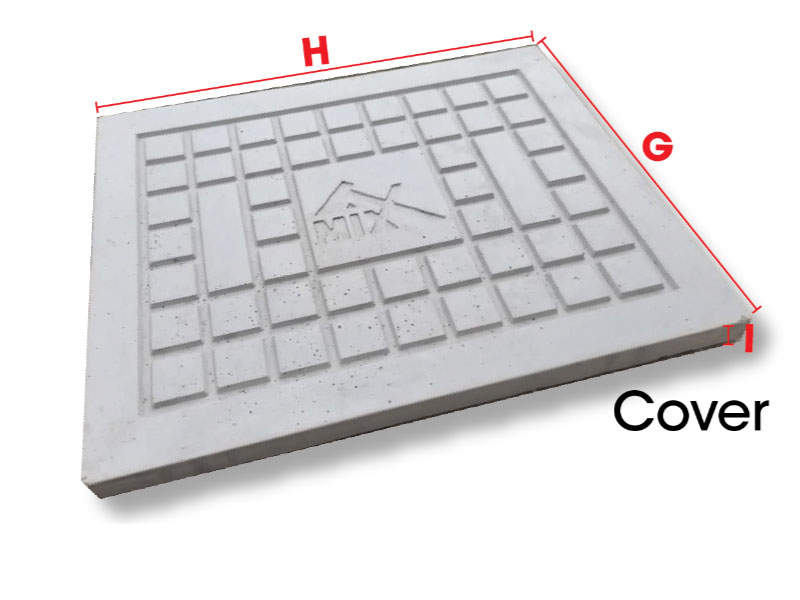

Cover
Product Code G
mm		 H
mm		 I
mm		 Weight
kg
MC1824A 400 500 30 11

*Scroll to the right to see more details.

Frame
Product Code A
mm		 B
mm		 C
mm		 D
mm		 E
mm		 F
mm		 Weight
kg
MC1824A 570 470 70 30 70 40 14

*Scroll to the right to see more details.







Reinforced Concrete Manhole Frame & Cover

Reinforced Concrete Heavy Duty F
   Mainhole Frame & Cover

Reinforced Concrete Manhole Frame & Cover
Reinforced Concrete Manhole Frame & Cover



product specification

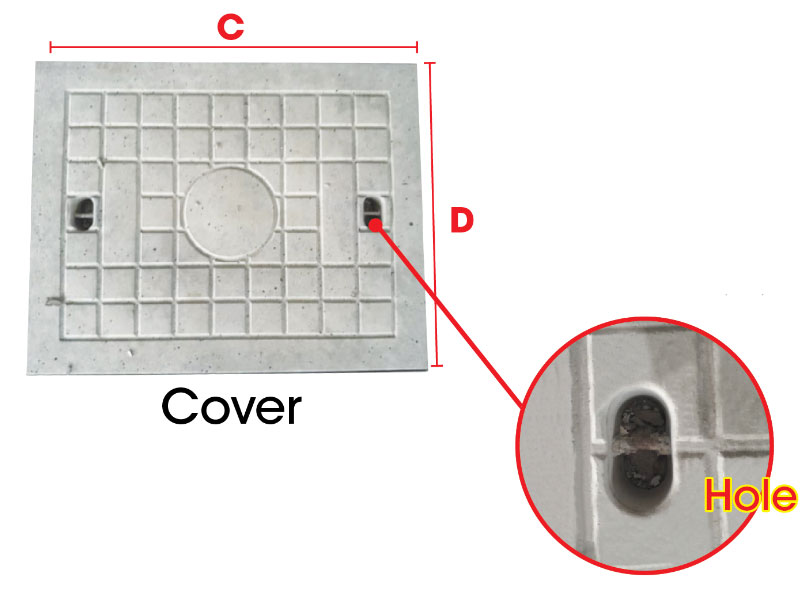

Cover
Product Code Length (C)
mm		 Width (D)
mm		 Thickness
mm		 Weight
kg
MC5560 500 500 60 32

*Scroll to the right to see more details.

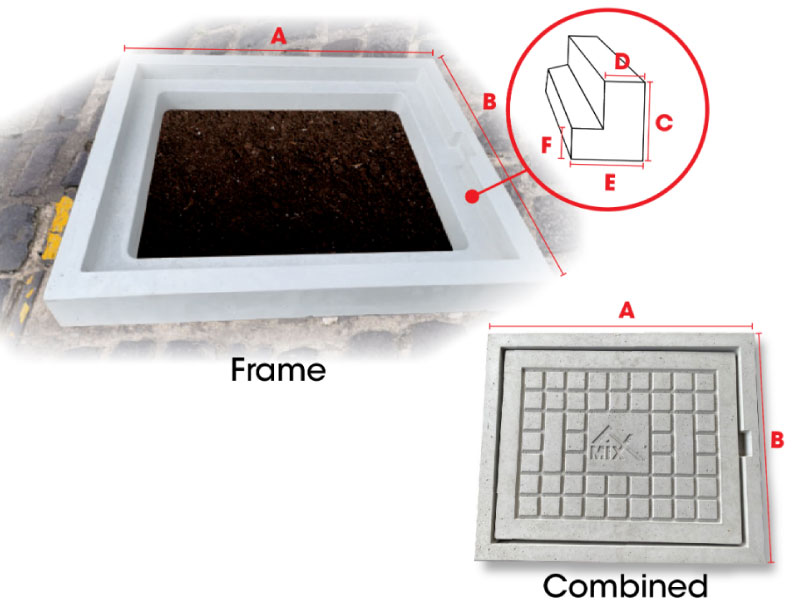

Frame
Product Code A
mm		 B
mm		 C
mm		 D
mm		 E
mm		 F
mm		 Weight
kg
CF5560 600 600 100 50 40 60 38

*Scroll to the right to see more details.

Frame
Product Code A
mm		 B
mm		 C
mm		 D
mm		 E
mm		 F
mm		 Weight
kg
CF5560 600 600 100 50 40 60 38

*Scroll to the right to see more details.

concrete manhole







Reinforced Concrete Manhole Frame & Cover

Reinforced Concrete Drain Cover & Frame G

Drain Cover & Frame
Drain Cover & Frame



product specification

Cover
Product Code Length (C)
mm		 Width (D)
mm		 Thickness
mm		 Weight
kg
MC5560 500 500 60 32

*Scroll to the right to see more details.

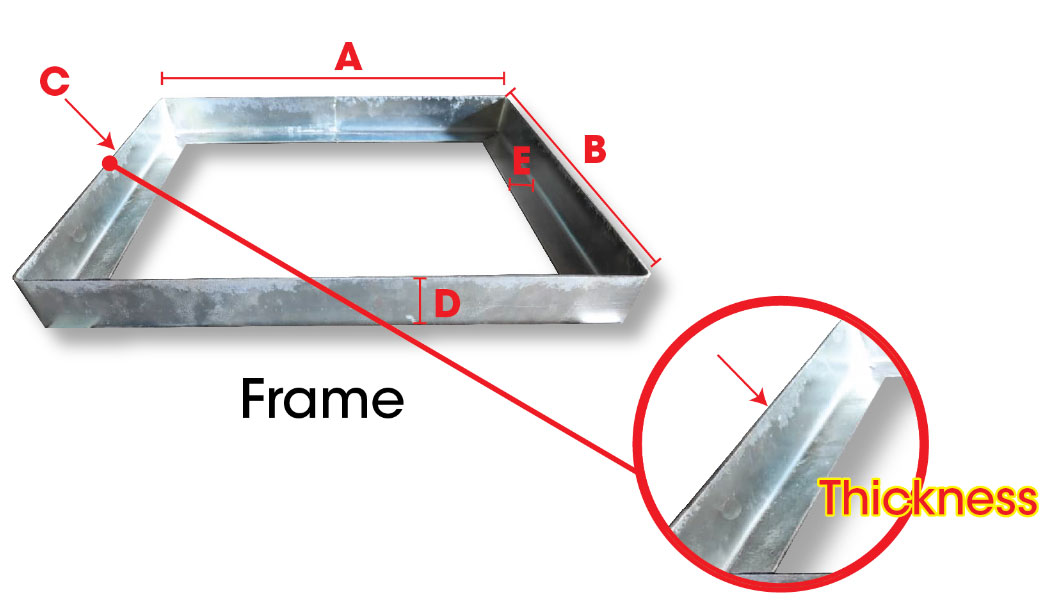

Frame
Product Code A
mm		 B
mm		 C
mm		 D
mm		 E
mm		 Weight
kg
SF5560 510 510 2.5 60 30 3.6

*Scroll to the right to see more details.

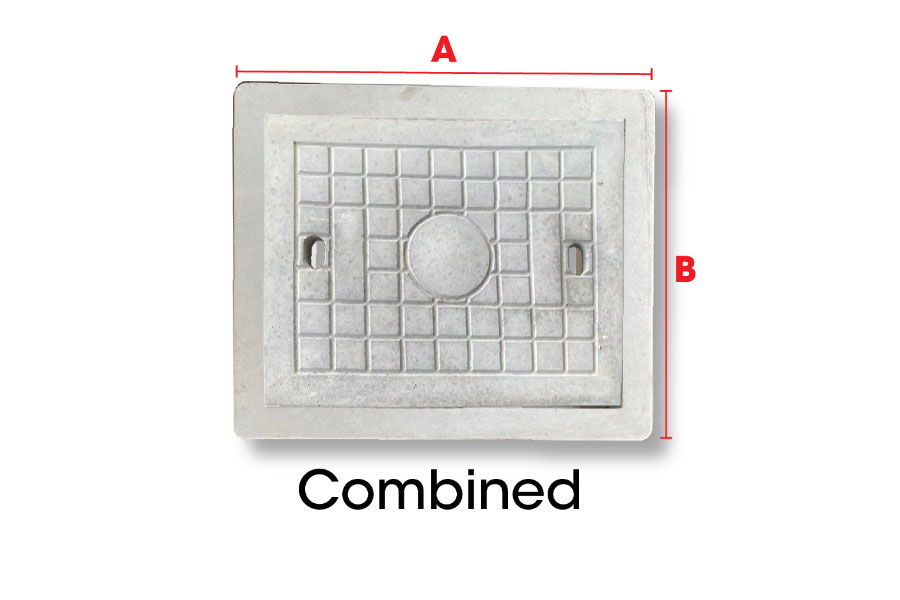

Combined
Product Code Length (A)
mm		 Width (B)
mm		 Thickness
mm		 Weight
kg
MCSF5560 510 510 60 35.6

*Scroll to the right to see more details.

mainhole









Reinforced Concrete Manhole Frame & Cover

Reinforced Concrete Heavy Duty H
   Mainhole Frame & Cover

concrete manhole
concrete manhole



product specification

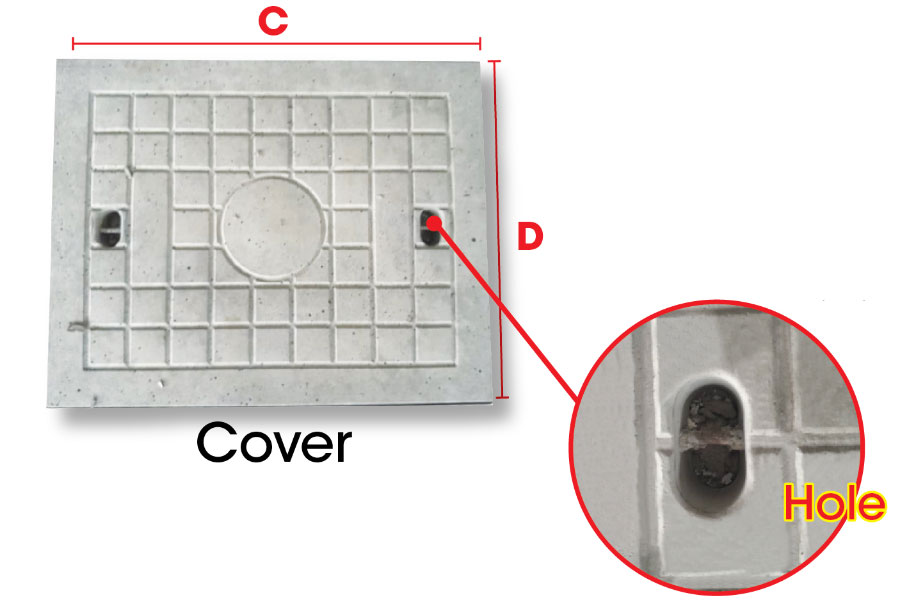

Cover
Product Code Length (C)
mm		 Width (D)
mm		 Thickness
mm		 Weight
kg
MC5460 500 400 60 27

*Scroll to the right to see more details.

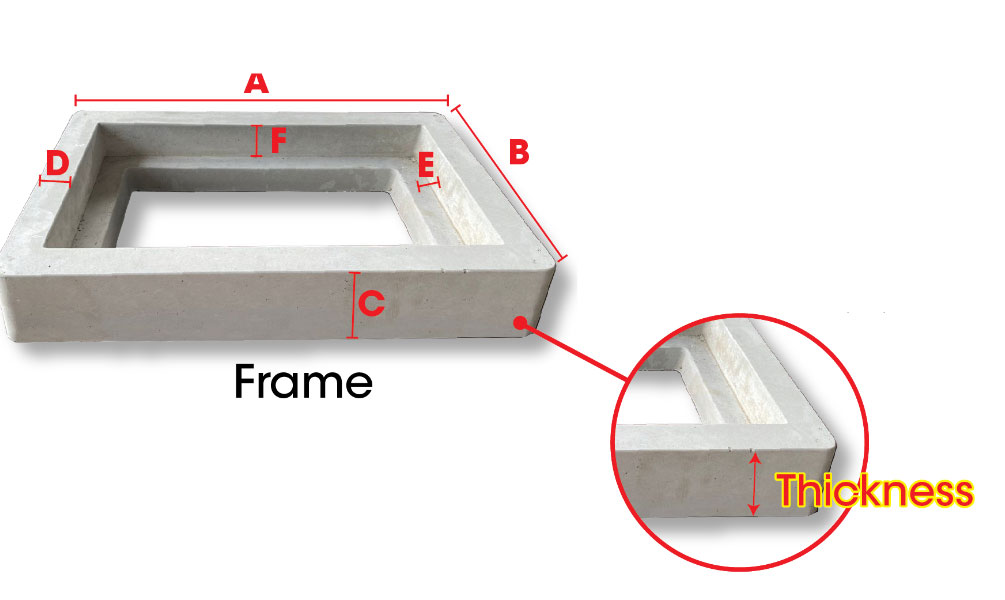

Frame
Product Code A
mm		 B
mm		 C
mm		 D
mm		 E
mm		 F
mm		 Weight
kg
CF5460 600 500 100 45 35 50 35

*Scroll to the right to see more details.

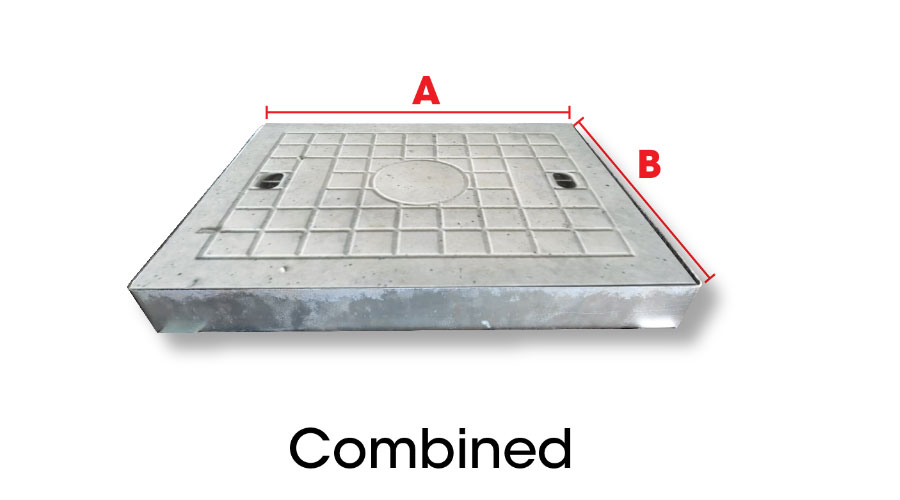

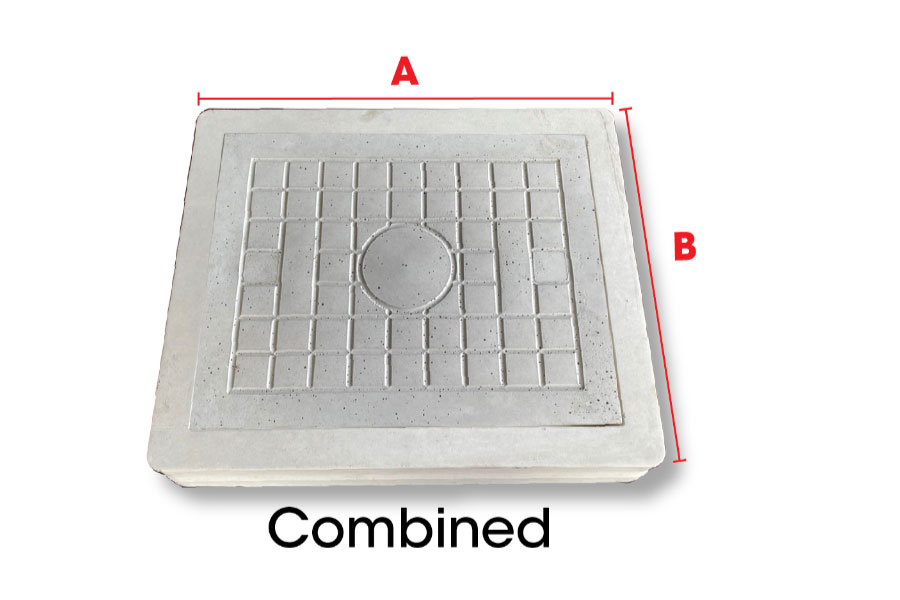

Combined
Product Code Length (A)
mm		 Width (B)
mm		 Thickness
mm		 Weight
kg
MCSF5460 600 500 100 62

*Scroll to the right to see more details.

precast drain









Reinforced Concrete Manhole Frame & Cover

Reinforced Concrete Drain Cover & Frame I

Reinforced Concrete Manhole Frame & Cover
Reinforced Concrete Manhole Frame & Cover



product specification

Cover
Product Code Length (C)
mm		 Width (D)
mm		 Thickness
mm		 Weight
kg
MC5460 500 400 60 27

*Scroll to the right to see more details.

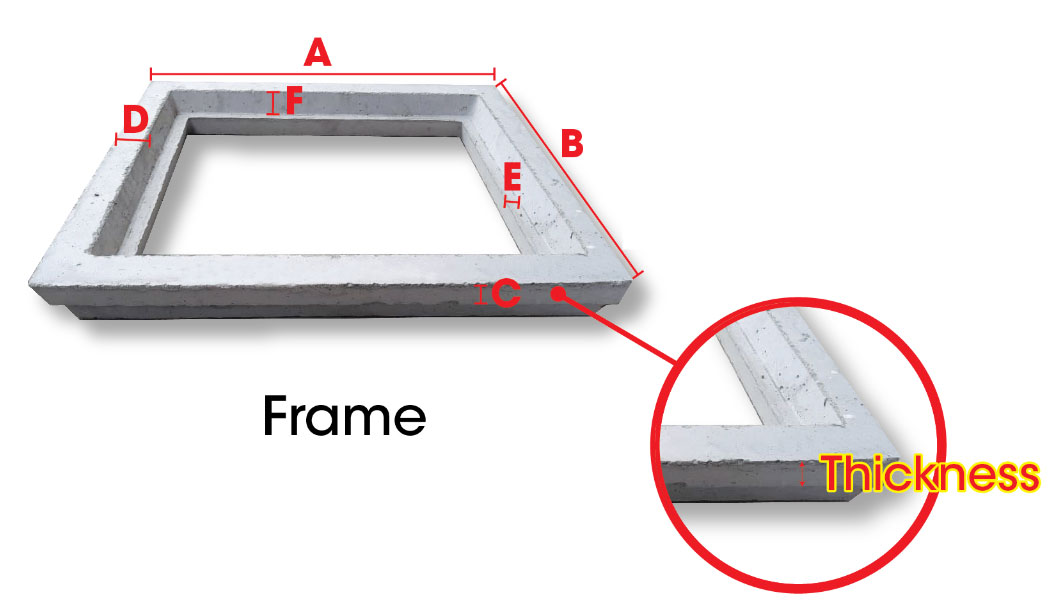

Frame
Product Code A
mm		 B
mm		 C
mm		 D
mm		 E
mm		 Weight
kg
SF5460 510 410 2.5 60 30 3.4

*Scroll to the right to see more details.

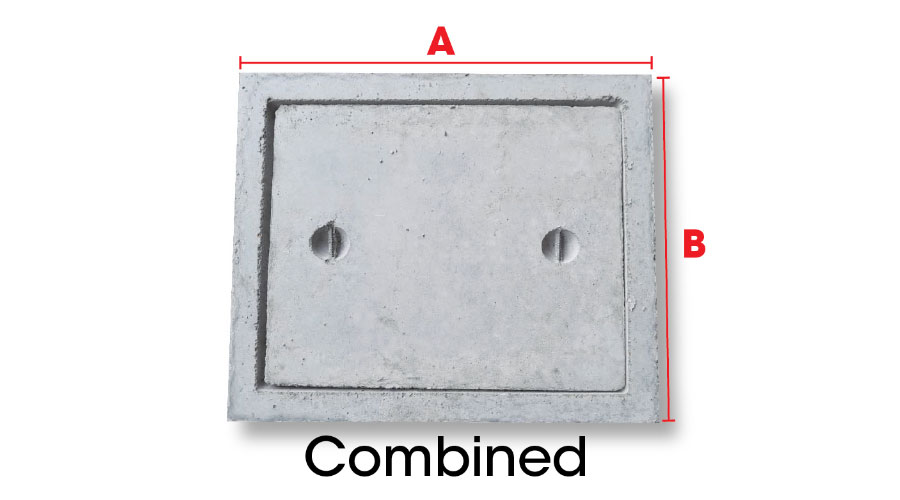

Combined
Product Code Length (A)
mm		 Width (B)
mm		 Thickness
mm		 Weight
kg
MCSF5460 510 410 60 30.4

*Scroll to the right to see more details.

precast concrete manhole









Reinforced Concrete Manhole Frame & Cover

Reinforced Concrete Drain Cover & Frame K

concrete manhole
concrete manhole



product specification

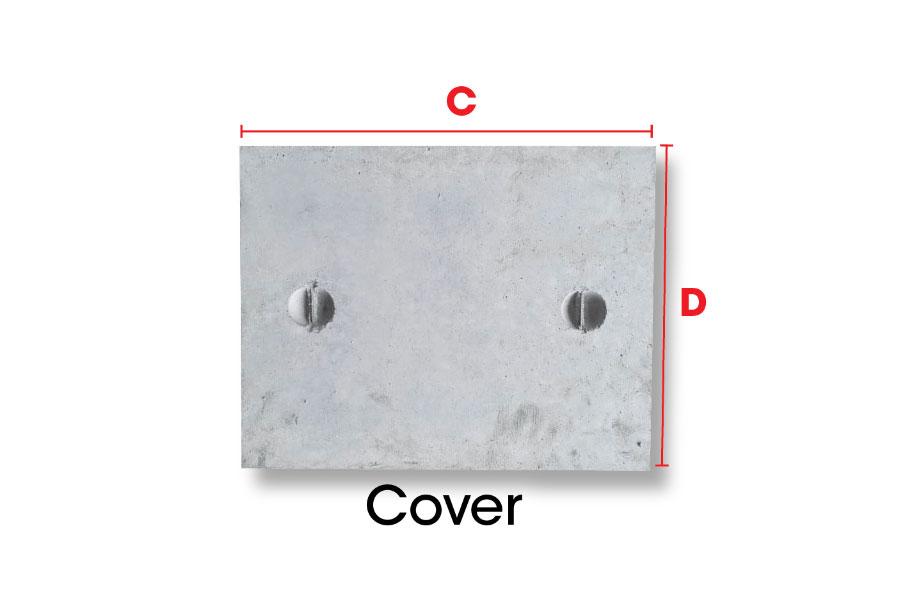

Cover
Product Code Length (C)
mm		 Width (D)
mm		 Thickness
mm		 Weight
kg
M1824C 530 430 40 15.3

*Scroll to the right to see more details.

Frame
Product Code A
mm		 B
mm		 C
mm		 D
mm		 E
mm		 F
mm		 Weight
kg
M1824C 630 530 80 50 20 40 16.4

*Scroll to the right to see more details.

Combined
Product Code Length (A)
mm		 Width (B)
mm		 Thickness
mm		 Weight
kg
M1824C 630 530 80 31.7

*Scroll to the right to see more details.

precast drain
