Drain Cover & Frame

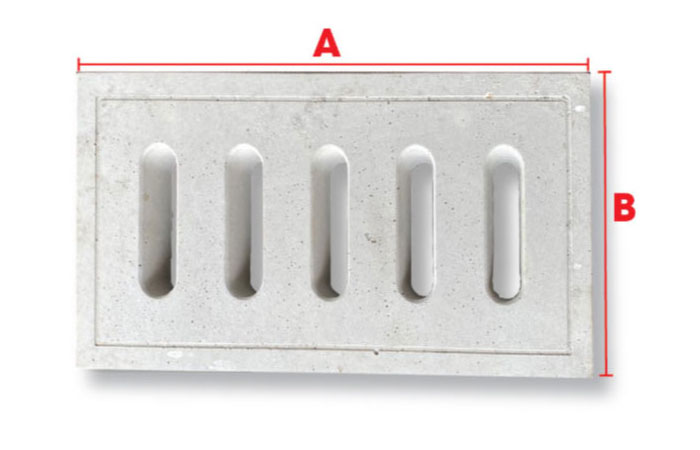

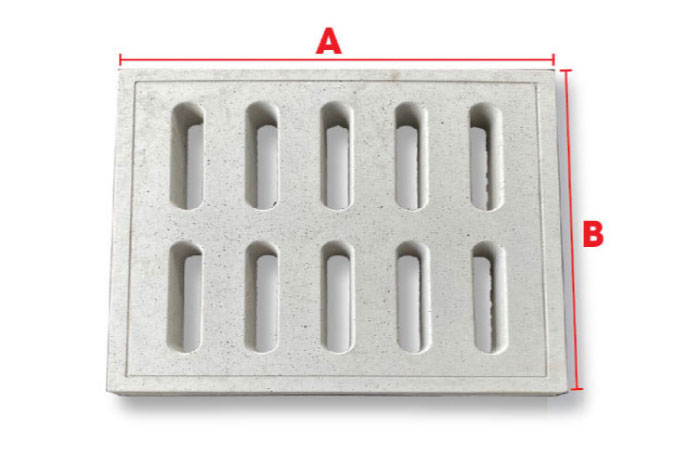

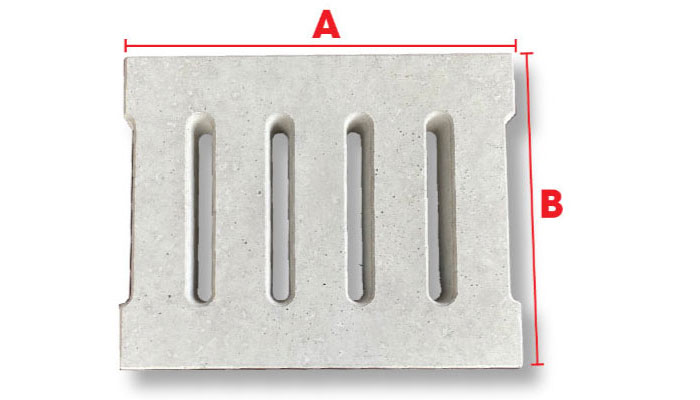

Reinforced Concrete Drain Cover A

Drain Cover & Frame



product specification

Cover
Product Code Length (A)
mm		 Width (B)
mm		 Thinkness
mm		 Weight
kg
DC6684 600 600 80 52

*Scroll to the right to see more details.

Drain Cover & Frame



product specification

Cover
Product Code Length (A)
mm		 Width (B)
mm		 Thinkness
mm		 Weight
kg
DC66510 600 600 50 31

*Scroll to the right to see more details.

Drain Cover & Frame



product specification

Cover
Product Code Length (A)
mm		 Width (B)
mm		 Thinkness
mm		 Weight
kg
DC6355 600 300 50 16

*Scroll to the right to see more details.









Drain Cover & Frame

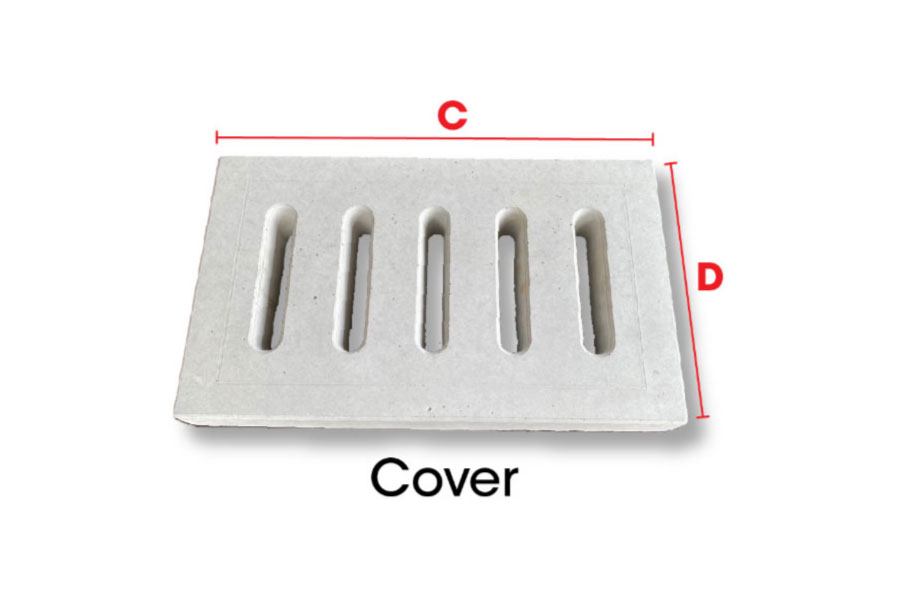

Reinforced Concrete Drain Cover & Frame B

Drain Cover & Frames
Drain Cover & Frame



product specification

Cover
Product Code Length (C)
mm		 Width (D)
mm		 Thinkness
mm		 Weight
kg
DC5365 500 300 60 18

*Scroll to the right to see more details.

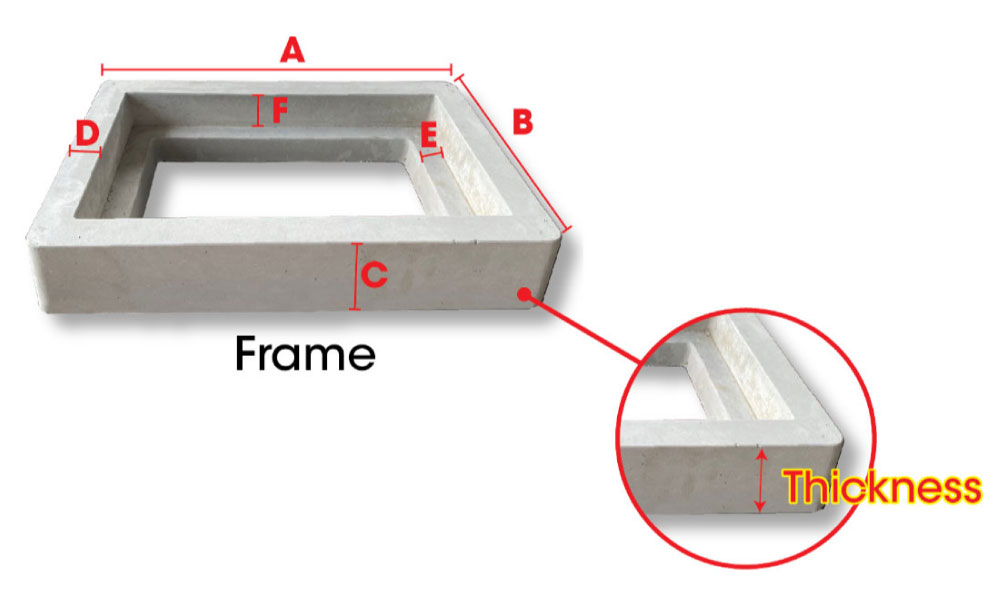

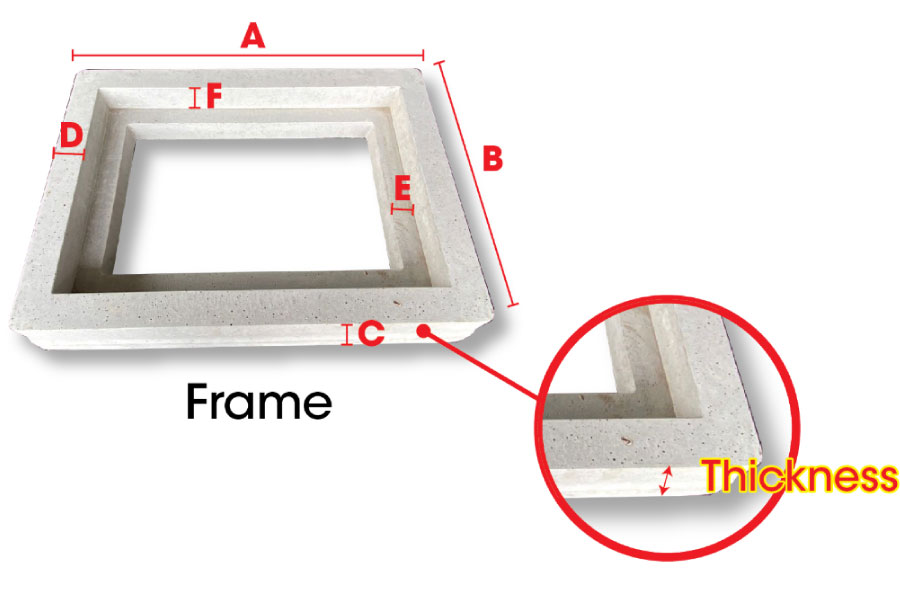

Frame
Product Code A
mm		 B
mm		 C
mm		 D
mm		 E
mm		 F
mm		 Weight
kg
CF5365 600 400 100 45 40 60 29

*Scroll to the right to see more details.

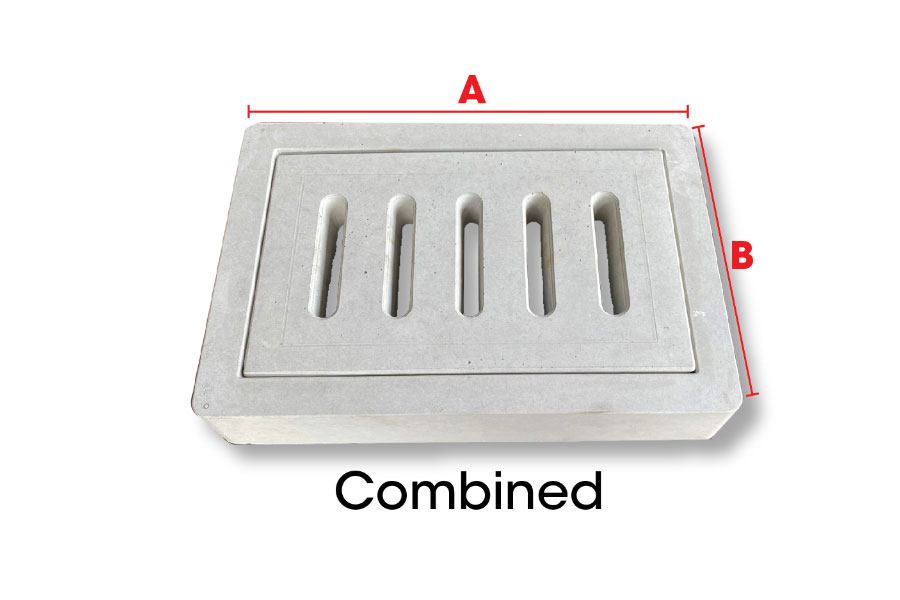

Combined
Product Code Length (A)
mm		 Width (B)
mm		 Thinkness
mm		 Weight
kg
DCF5365 600 400 100 47

*Scroll to the right to see more details.

drain cover









Drain Cover & Frame

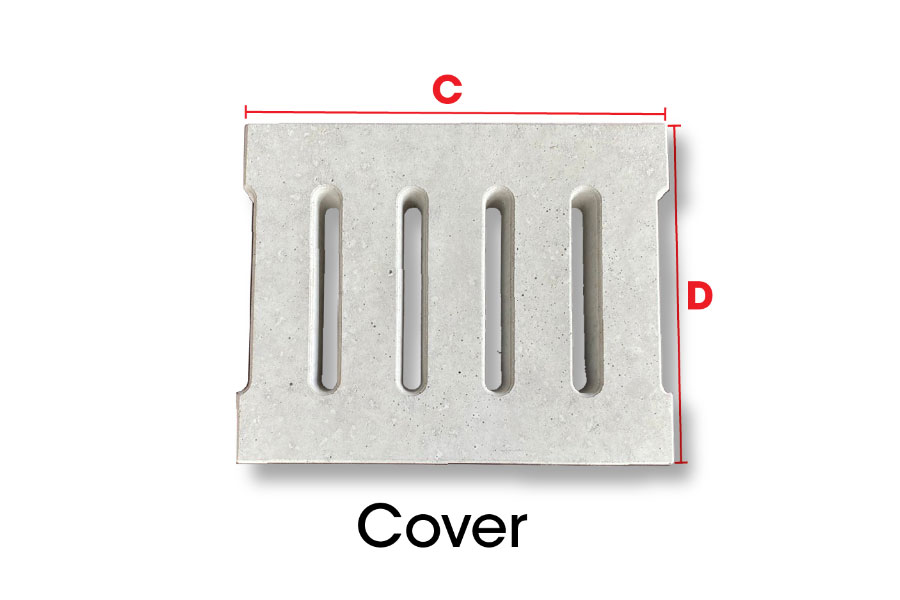

Reinforced Concrete Drain Cover & Frame C

Drain Cover & Frame
Drain Cover & Frame



product specification

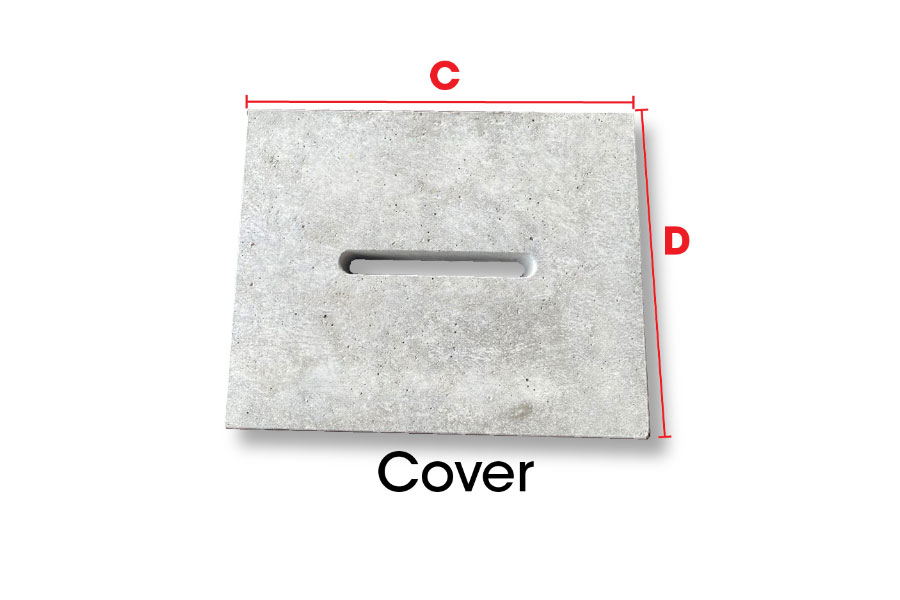

Cover
Product Code Length (C)
mm		 Width (D)
mm		 Thinkness
mm		 Weight
kg
DC5464 500 400 60 23

*Scroll to the right to see more details.

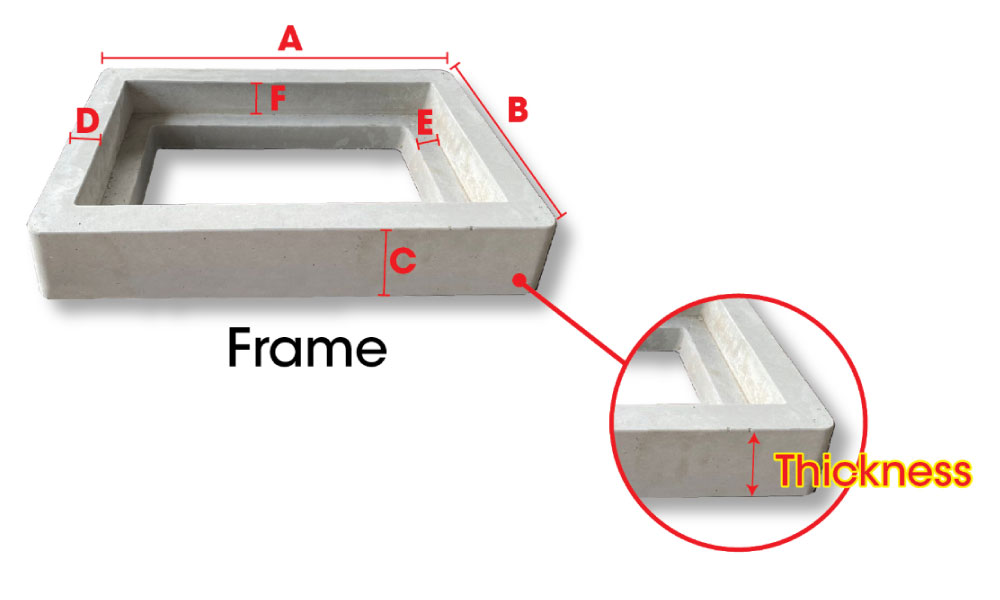

Frame
Product Code A
mm		 B
mm		 C
mm		 D
mm		 E
mm		 F
mm		 Weight
kg
CF5464 600 500 100 45 35 50 35

*Scroll to the right to see more details.

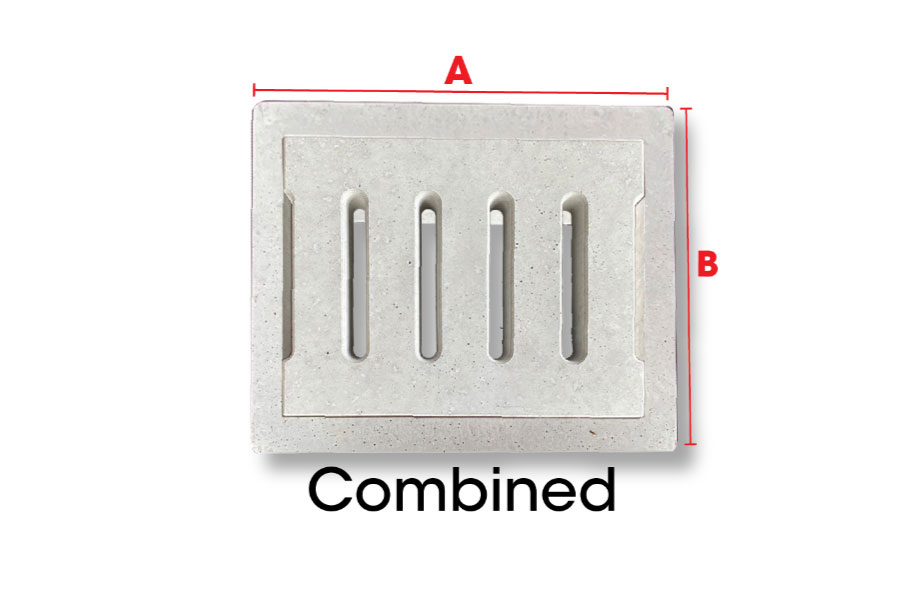

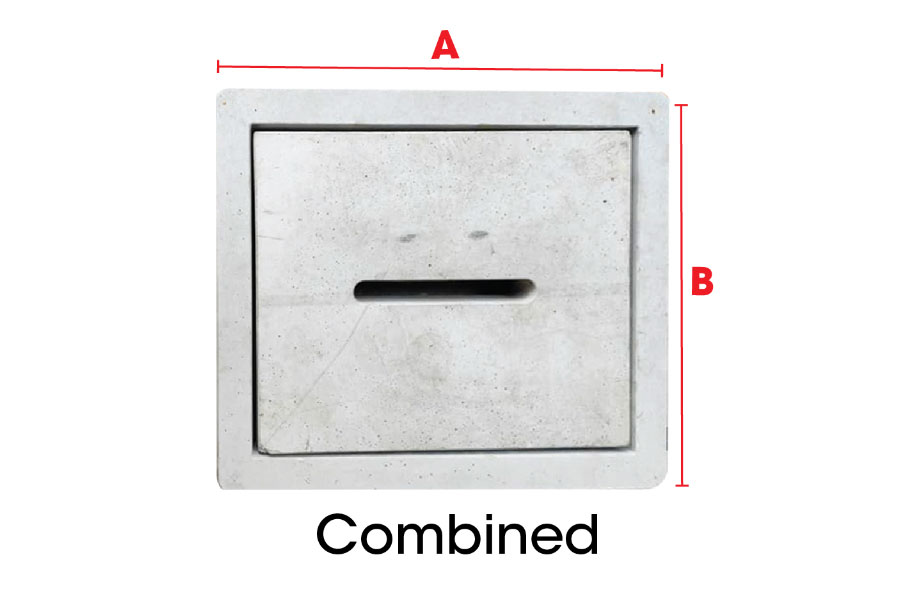

Combined
Product Code Length (A)
mm		 Width (B)
mm		 Thinkness
mm		 Weight
kg
DCF5464 600 500 100 58

*Scroll to the right to see more details.

Reinforced Concrete Drain Cover









Drain Cover & Frame

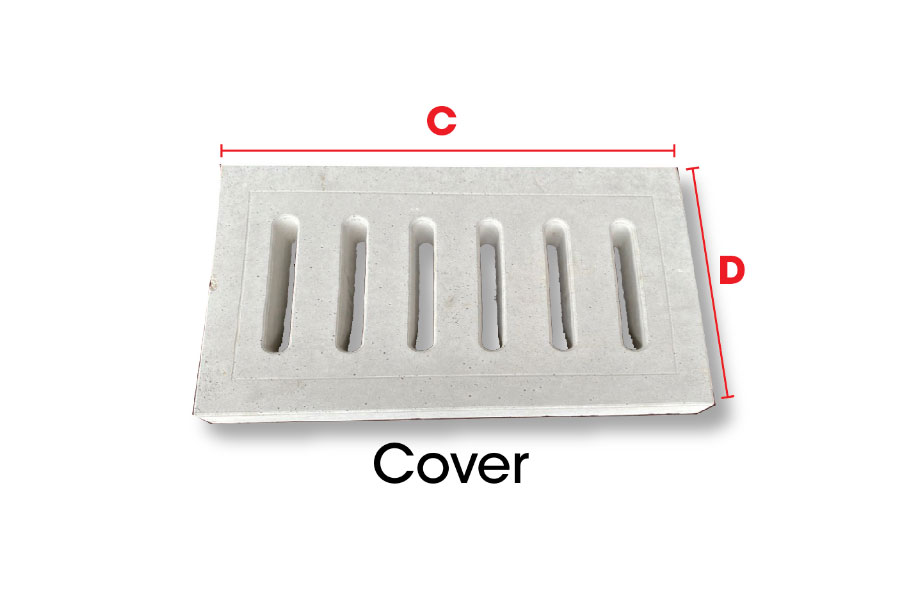

Reinforced Concrete Drain Cover & Frame D

Drain Cover & Frame
Drain Cover & Frame



product specification

Cover
Product Code Length (C)
mm		 Width (D)
mm		 Thinkness
mm		 Weight
kg
DC6466 600 400 60 27

*Scroll to the right to see more details.

Frame
Product Code A
mm		 B
mm		 C
mm		 D
mm		 E
mm		 F
mm		 Weight
kg
CF6466 700 500 100 50 40 60 41

*Scroll to the right to see more details.

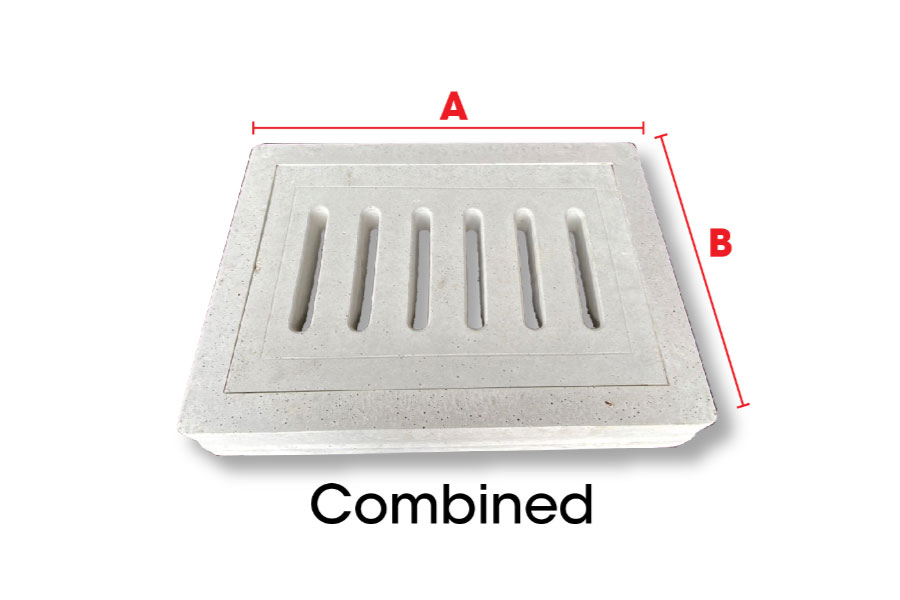

Combined
Product Code Length (A)
mm		 Width (B)
mm		 Thinkness
mm		 Weight
kg
DCF6466 700 500 100 68

*Scroll to the right to see more details.

precast drain









Drain Cover & Frame

Reinforced Concrete Drain Cover & Frame E

Drain Cover & Frame
Drain Cover & Frame



product specification

Cover
Product Code Length (C)
mm		 Width (D)
mm		 Thinkness
mm		 Weight
kg
DC5461 500 400 60 26

*Scroll to the right to see more details.

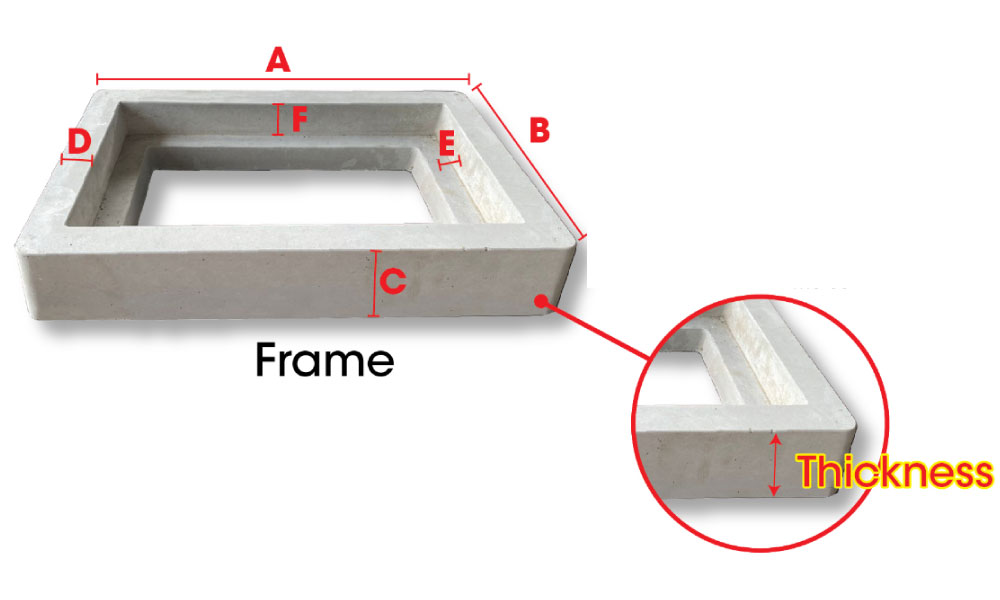

Frame
Product Code A
mm		 B
mm		 C
mm		 D
mm		 E
mm		 F
mm		 Weight
kg
CF5461 600 500 100 45 35 50 35

*Scroll to the right to see more details.

Combined
Product Code Length (A)
mm		 Width (B)
mm		 Thinkness
mm		 Weight
kg
DCF5461 600 500 100 61

*Scroll to the right to see more details.

precast drain
